Components Location

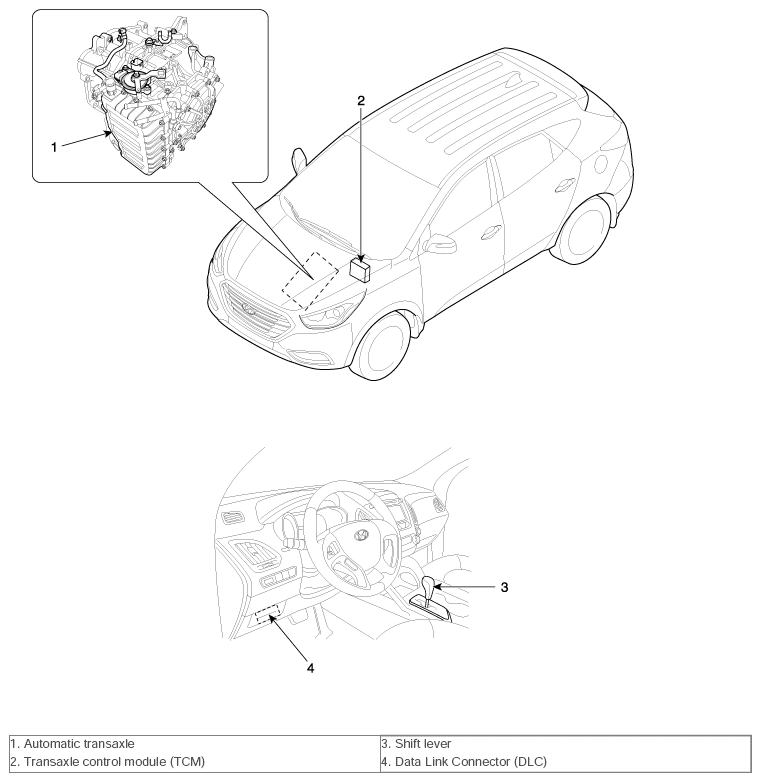

[Vehicle Components]

Fig 1: Transaxle Control Module Related Components (Vehicle)
G10631714Courtesy of HYUNDAI MOTOR AMERICA

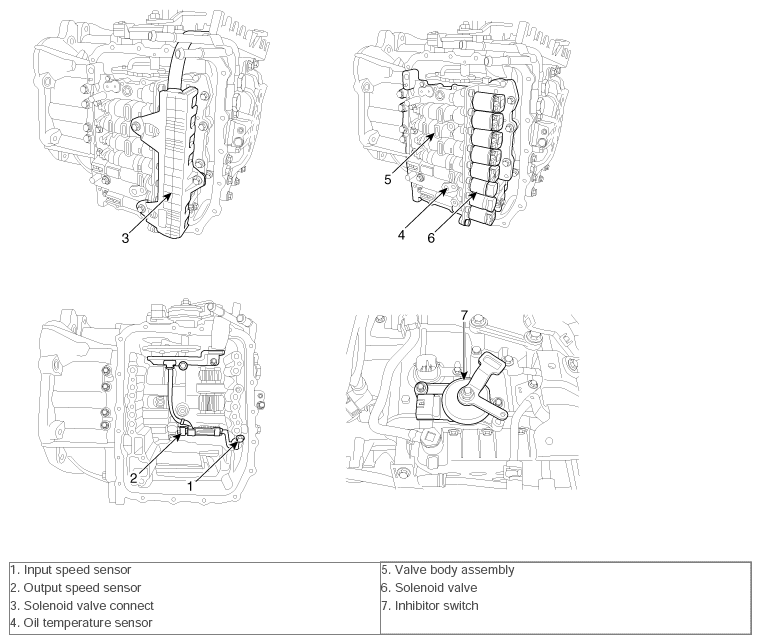

[Transaxle Components]

Fig 2: Transaxle Control Module Related Components (Transaxle)
G10631715Courtesy of HYUNDAI MOTOR AMERICA
