Home >> Hyundai >> 2015 >> Tucson GLS, FWD >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Front Strut Assembly >> Components and Components Location >> Components

Components and Components Location: Components

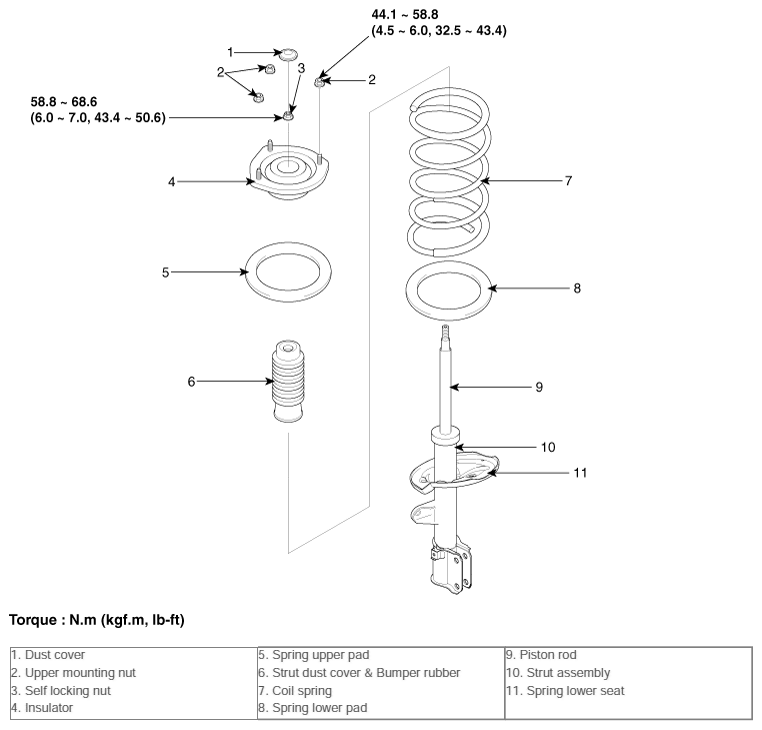

Fig 1: Front Strut Assembly Components With Torque Specification

G10612070

Courtesy of HYUNDAI MOTOR AMERICA
