Section 18 (4WD Control System Diagnosis)
>>
DTC U0122: Lost Communication With Vehicle Dynamics Control Module
>>
Specification
>>
CAN Signal: High & Low
CAN Signal: High & Low
WARNING:
This page is about a different variant/trim than selected.

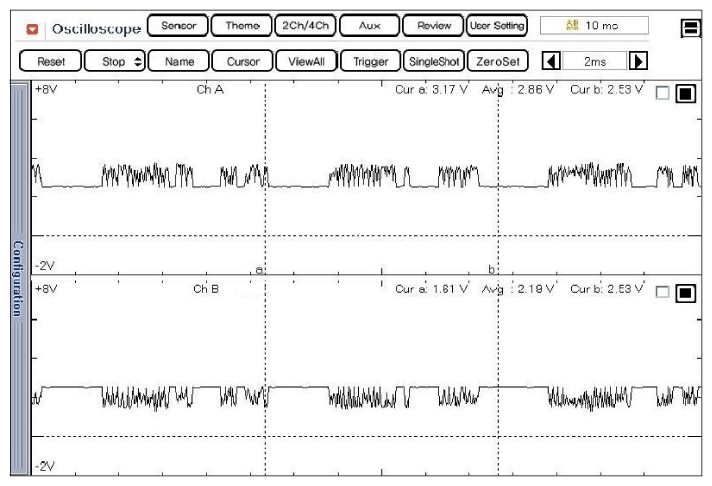

Fig 1: Display - ESC Module CAN High And Low Signal Waveforms Screen
Courtesy of HYUNDAI MOTOR AMERICA
