Hub Bolt Installation

WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

After fixing the hub using special tool front hub and flange yoke holder (MB990767), install the plain washer to the new hub bolt, and tighten the bolt with a nut.

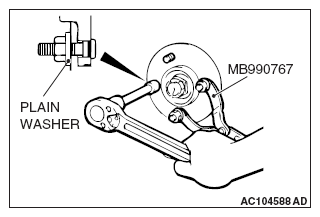

Fig 1: Installing Plain Washer Using Tool
G09631569Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
