Hub Removal
WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When the hub has been removed, always replace the wheel bearing with a new part because wheel bearing frictional surface will be damaged when removing the hub.

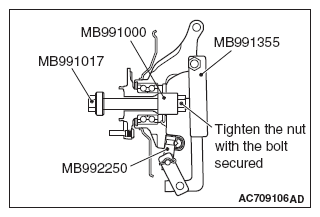

Use the following special tools to pull out the front wheel hub assembly from the knuckle.
- Front hub remover and installer (MB991017)NOTE: Except spacer (MB991019).
- Knuckle arm bridge (MB991355)
- Knuckle Arm Bridge attachment (MB992250)
- Front hub remover and installer spacer (MB992867)
