Spider Assembly Installation

WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The driveshaft joint use special grease. Do not mix old and new or different types of grease.
  • If the spider assembly has been cleaned, take special care to apply the specified grease.
  1. Apply the specified grease furnished in the repair kit to the spider assembly between the spider axle and the roller.

    Specified grease: Repair kit grease

  2. Install the spider assembly to the shaft from the direction of the spline chamfered side.

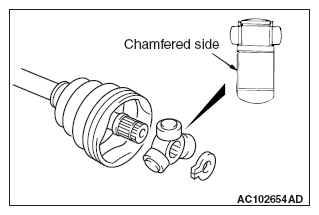

    Fig 1: Identifying Spider Assembly
    G09631592Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
