ETJ Case Installation

WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The driveshaft joint use special grease. Do not mix old and new or different types of grease.

After applying the specified grease to the ETJ case, insert the driveshaft and apply grease one more time.

Specified grease: Repair kit grease

75 ± 10 g (2.6 ± 0.4 oz)

NOTE: When using the repair kit grease, fill the half of the grease into the joint and the other half into the boot as a guideline, and consume the grease completely.

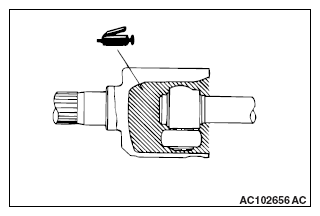

Fig 1: Identifying Grease Applying Area On ETJ Case
G09631593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
