Signal Waveform & Data

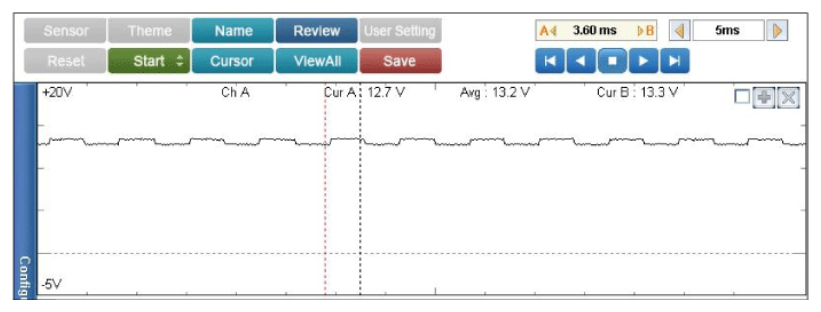

Fig 1: Screen Display - Normal Waveform Of Wheel Speed Sensor At Idle

Courtesy of HYUNDAI MOTOR AMERICA

• High: approx. 13.3V, Low: approx. 12.7V

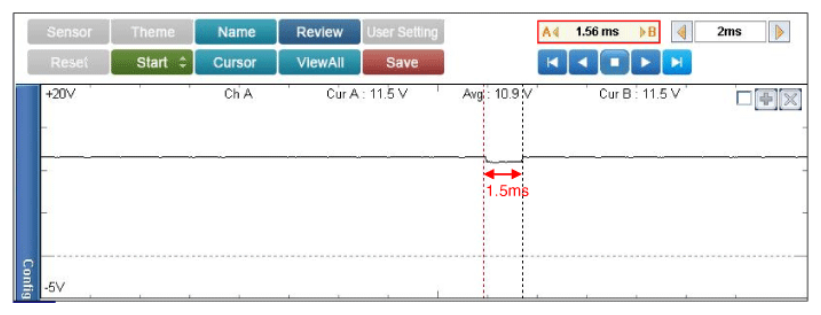

Fig 2: Screen Display - Normal Waveform Of Smart Type Wheel Speed Sensor At Standing Still

Courtesy of HYUNDAI MOTOR AMERICA

* Smart type wheel speed sensor is applied to the rear wheel speed sensor of the vehicle equipped SPAS

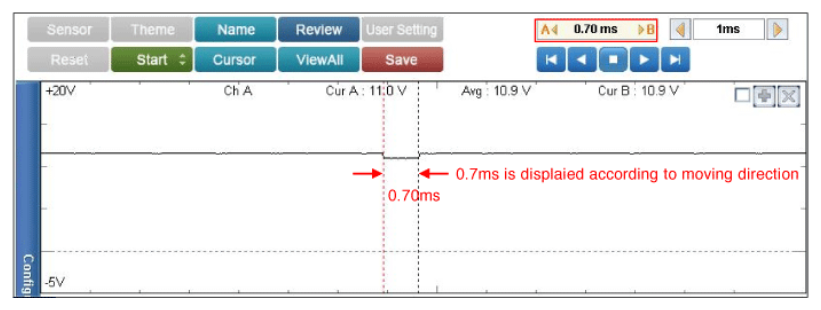

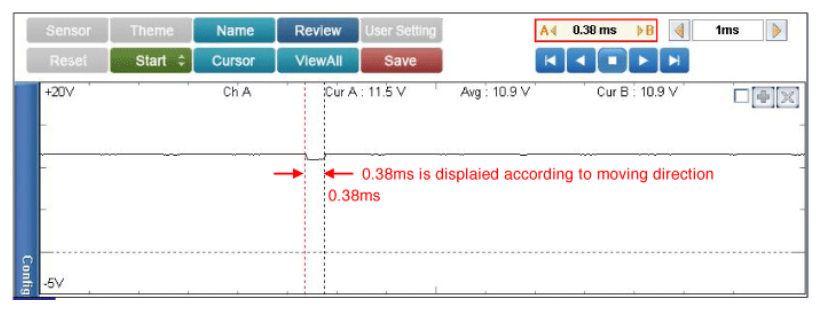

Fig 3: Screen Display - Normal Waveform Of Smart Type Wheel Speed Sensor According To Moving Condition At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Screen Display - Normal Waveform At Power Terminal Of Wheel Speed Sensor With Disconnected Connector At IG ON

Courtesy of HYUNDAI MOTOR AMERICA
