Audio Unit (PA30B)

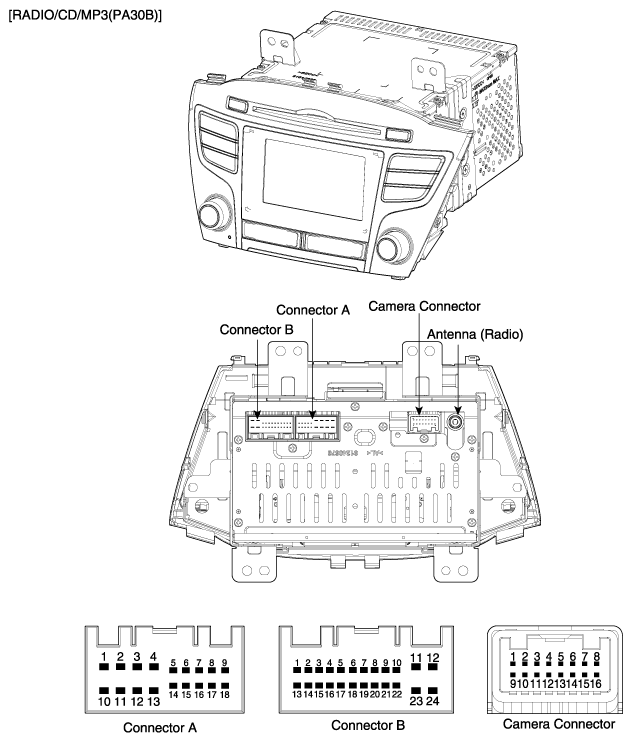

CONNECTOR PIN REFERENCE
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear left speaker (+) | - | - |
| 2 | Front left speaker (+) | - | - |
| 3 | Front right speaker (+) | - | Camera ground |
| 4 | Rear right speaker (+) | Steering wheel remote | Camera video input |
| 5 | - | - | - |
| 6 | - | USB D (+) | - |
| 7 | Ignition | USB/iPod VDD | - |
| 8 | Illumination (+) | AUX R IN | - |
| 9 | Detent | AUX GND | - |
| 10 | Rear left speaker (-) | Mic (+) B/T | Camera battery (+) |
| 11 | Front left speaker (-) | ACC | Parking ground |
| 12 | Front right speaker (-) | B+ | P detector |
| 13 | Rear right speaker (-) | - | - |
| 14 | - | - | - |
| 15 | - | Autolight | - |
| 16 | - | Speed | - |
| 17 | Illumination (-) | Remote GND | |
| 18 | Remote antenna | USB D (-) | |
| 19 | USB/iPod GND | ||
| 20 | AUX DETECT | ||
| 21 | AUX L IN | ||
