Repair procedures: Removal

Remove the driver airbag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel screws from the back cover.

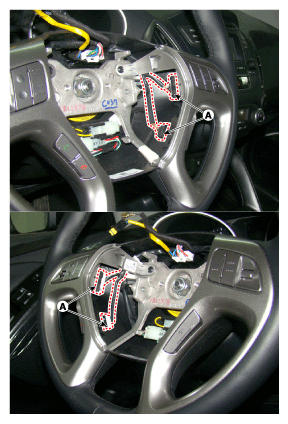

Fig 1: Steering Wheel Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the audio remote control switch connector (A).

Fig 2: Audio Remote Control Switch Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Remove the audio remote control switch (A).
NOTE: Be careful not to damage the hook when removing the switch.

Fig 3: Removing Audio Remote Control Switch
Courtesy of HYUNDAI MOTOR AMERICA
