Components and Components Location: Components

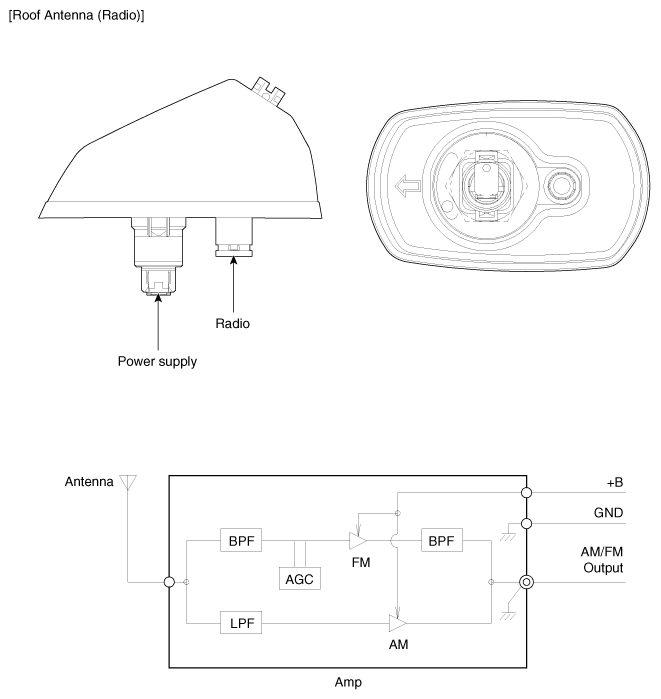

Fig 1: Antenna Components And Circuit Diagram

G10612906

Courtesy of HYUNDAI MOTOR AMERICA
