Trouble Diagnostics When Using GDS

The IPM can be diagnosed by using the GDS. The BCM communicates with the GDS which then displays inputs and outputs along with codes.
To diagnose the IPM function, select the vehicle model and IPM.

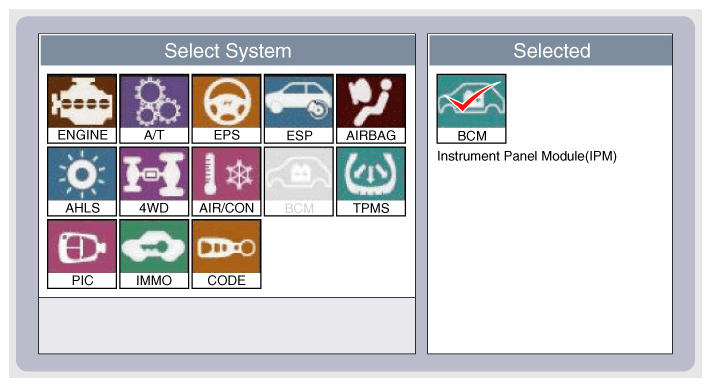

Fig 1: Display - Select Instrument Panel Module Screen
Courtesy of HYUNDAI MOTOR AMERICA
To consult the present input/out value of IPM, "Current DATA". It provides information of IPM input/output conditions of power supply, turn signal/brake lamp, headlamp, door locks, outside mirror, wiper, auto-light and transmitters etc.

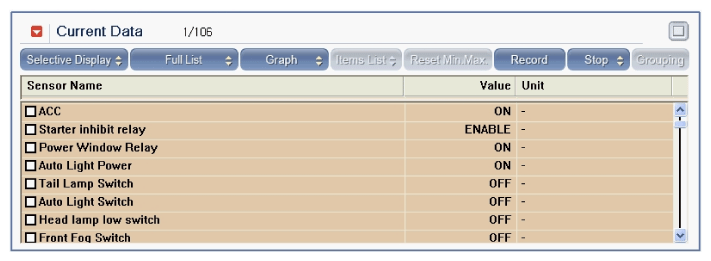

Fig 2: Display - IPM Current Data Screen
Courtesy of HYUNDAI MOTOR AMERICA
To perform functional test on IPM outputs, select "Actuation Test"

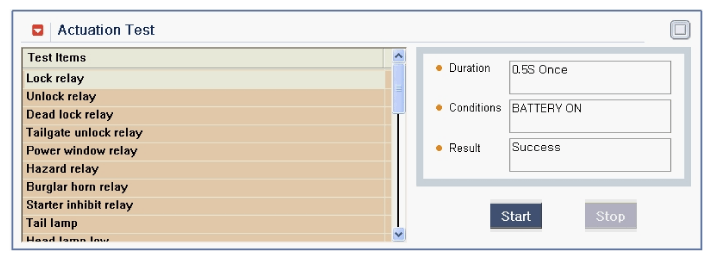

Fig 3: Display - IPM Actuation Test Screen (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

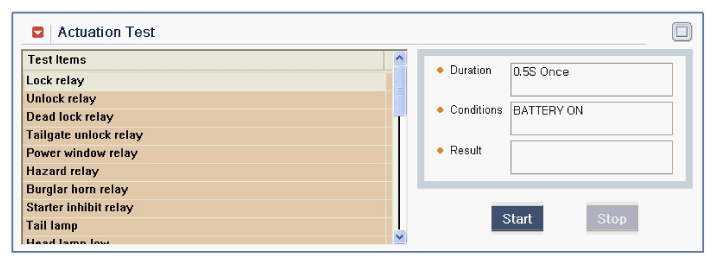

Fig 4: Display - IPM Actuation Test Screen (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
