Circuit Diagram

(M/T)

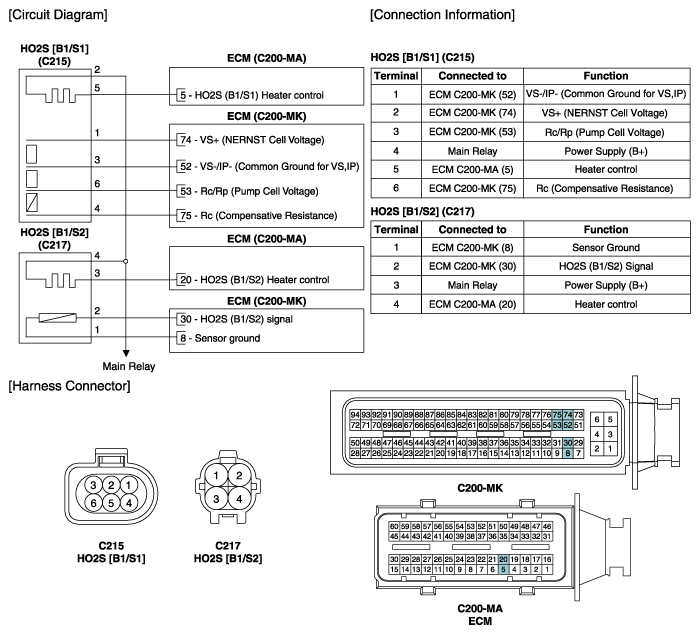

Fig 1: HO2S Circuit Diagram (M/T)

G10611495

Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

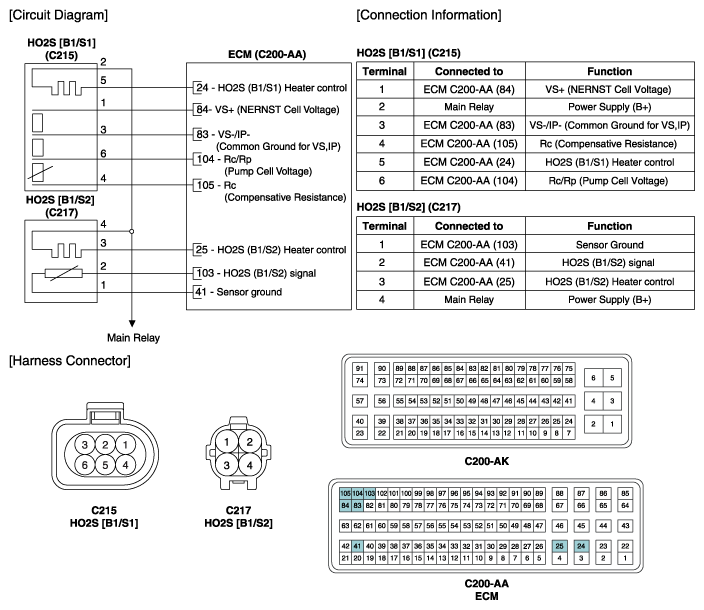

Fig 2: HO2S Circuit Diagram (A/T)

G10611496

Courtesy of HYUNDAI MOTOR AMERICA
