Components and Components Location: Components

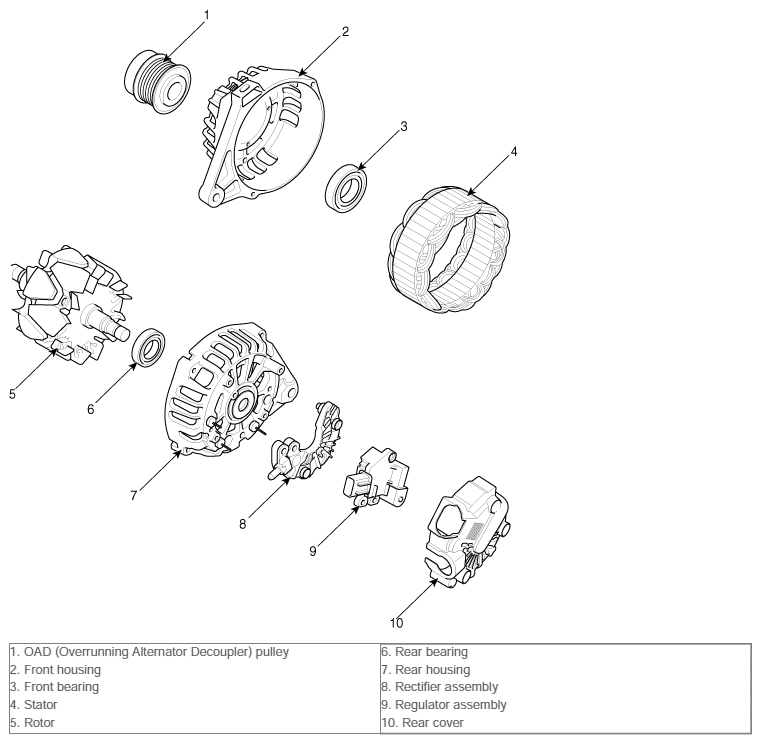

Fig 1: Exploded View Of Alternator

G10611316

Courtesy of HYUNDAI MOTOR AMERICA
