Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "CODE SAVING"

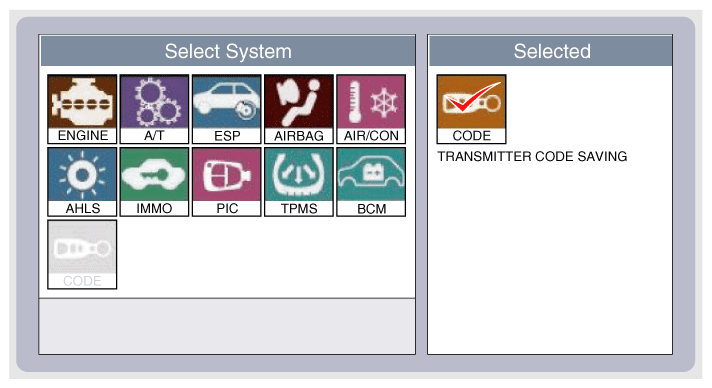

Fig 2: Display - Select Transmitter Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown in illustration as below.

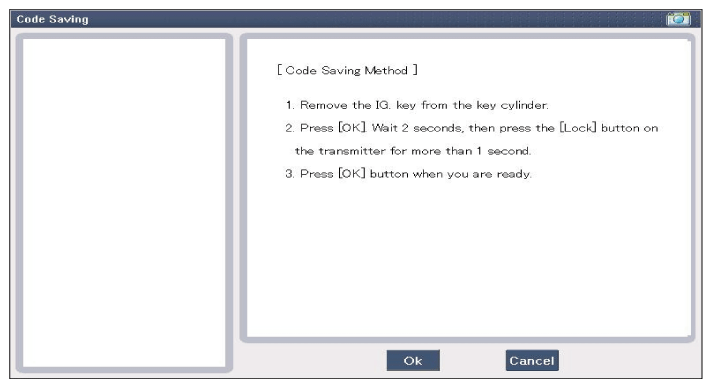

Fig 3: Display - Code Saving Method Screen
Courtesy of HYUNDAI MOTOR AMERICA
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

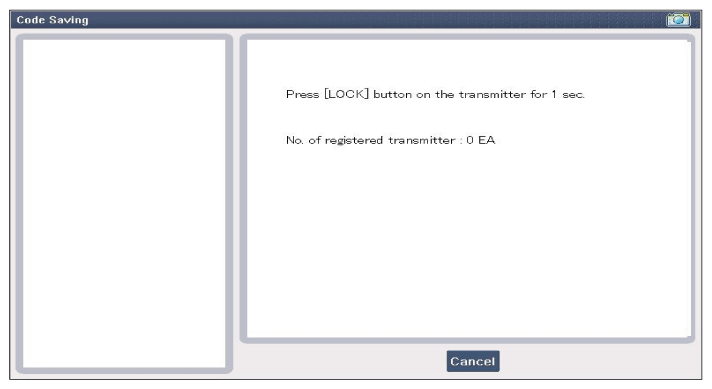

Fig 4: Display - Code Saving Screen (1 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

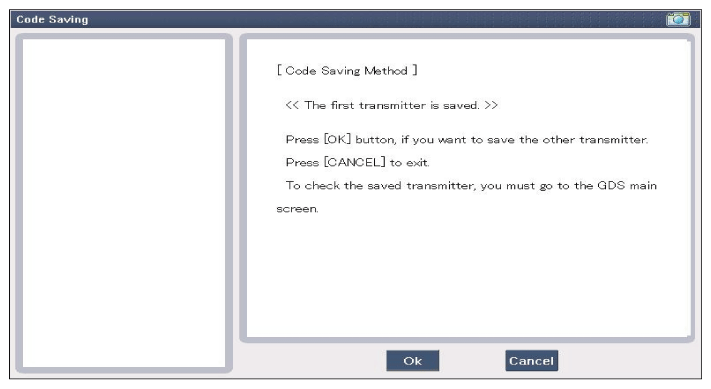

Fig 5: Display - Code Saving Screen (2 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

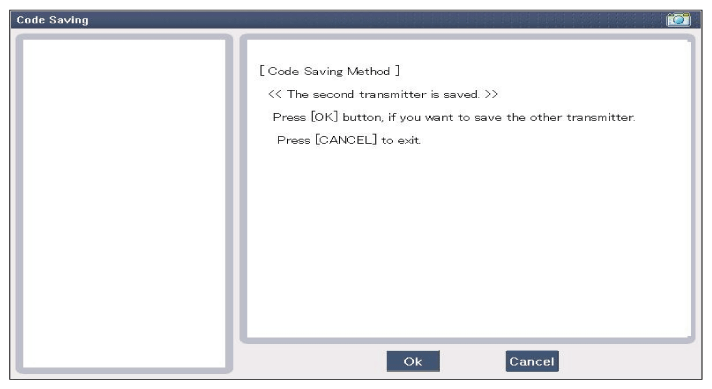

Fig 6: Display - Code Saving Screen (3 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

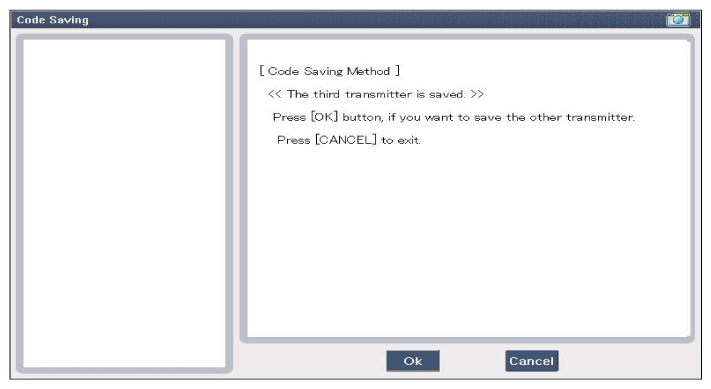

Fig 7: Display - Code Saving Screen (4 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Display - Code Saving Screen (5 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - Code Saving Screen (6 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Display - Code Saving Screen (7 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

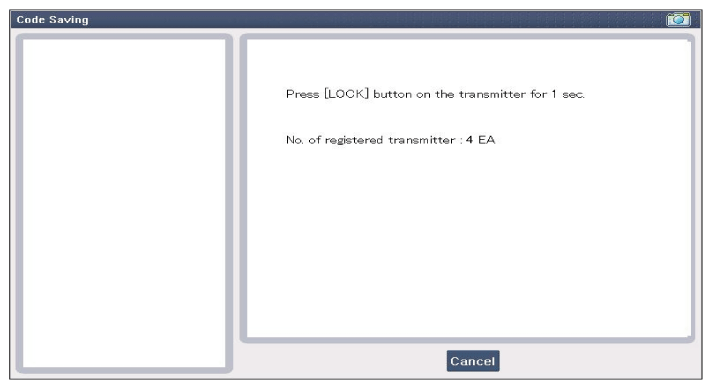

Fig 11: Display - Code Saving Screen (8 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

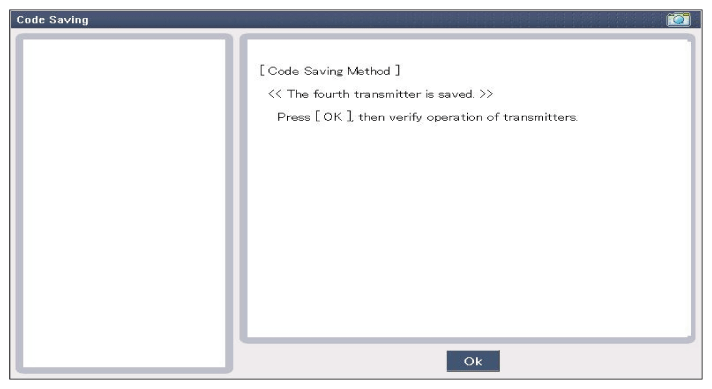

Fig 12: Display - Code Saving Screen (9 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
