Tucson GLS, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 2.0L
>>
Input Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

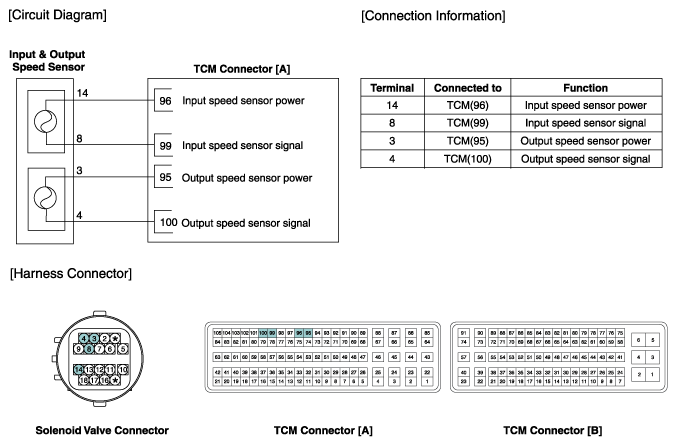

Fig 1: Input And Output Speed Sensor Schematic Diagrams With Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
