Compensation Requirement and Procedure

Simultaneous replacement of 4WD ECU (Controller) and coupling
1. Does not require compensation.
Replacement of coupling only
1. Reset the 4WD ECU's (Controller) clutch learning.

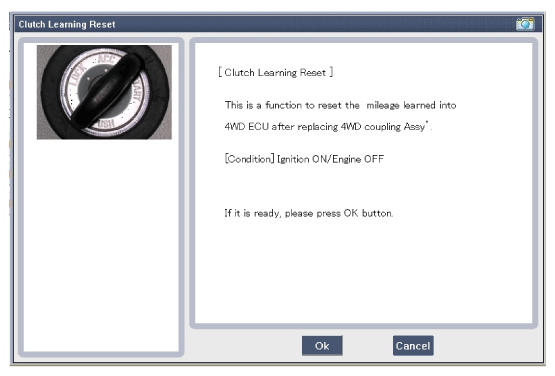

Fig 1: Display - Clutch Learning Reset Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

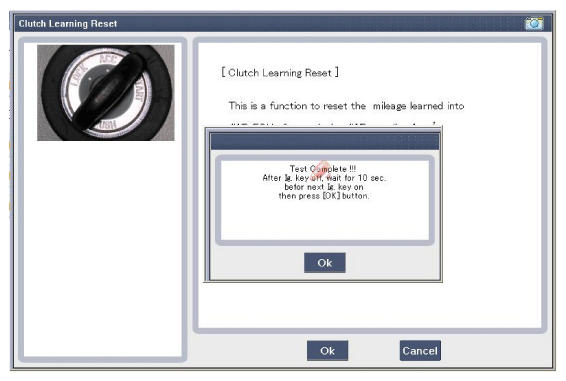

Fig 2: Display - Clutch Learning Reset Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Replacement of 4WD ECU (Controller) only
1. Before replacement: Check the ECU's clutch learning.

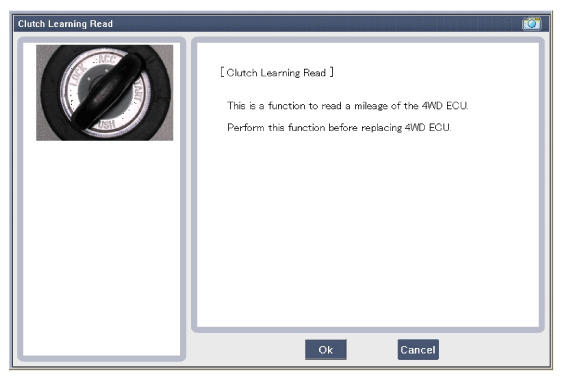

  Fig 3: Display - Clutch Learning Read Screen (1 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA

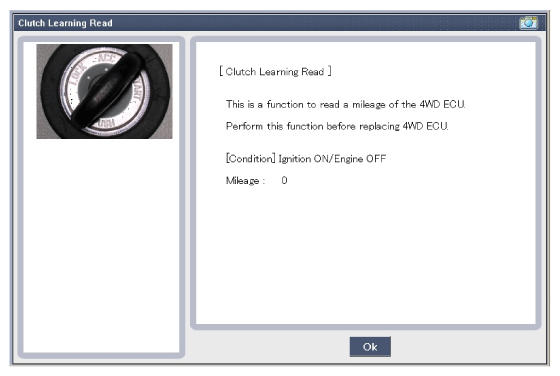

  Fig 4: Display - Clutch Learning Read Screen (2 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA
2. After replacement: Enter the original ECU's clutch learning into the replacement ECU.

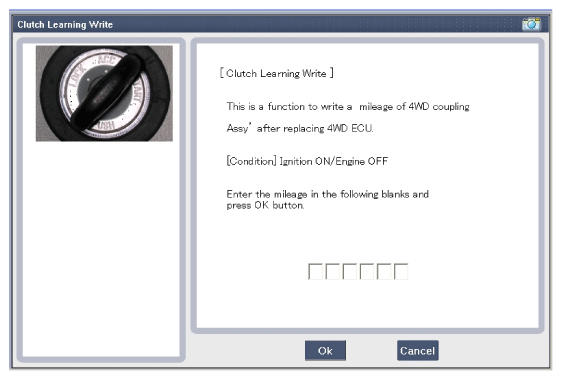

  Fig 5: Display - Clutch Learning Write Screen
  Courtesy of HYUNDAI MOTOR AMERICA
