Components Location: (4WD)

WARNING: This page is about a different variant/trim than selected.

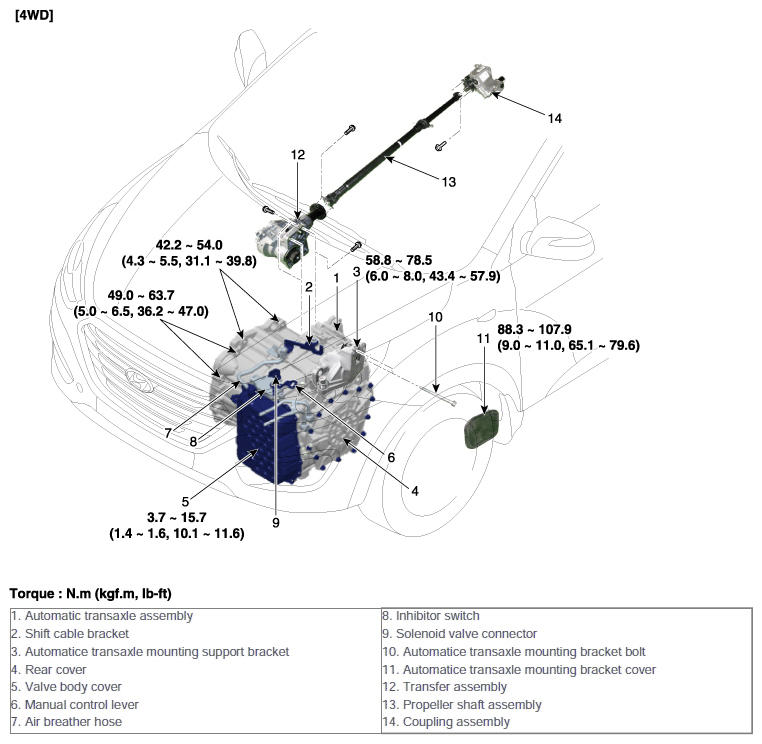

Fig 1: Automatic Transaxle System Component Locations With Torque Specifications
G10631650Courtesy of HYUNDAI MOTOR AMERICA
