Components Location: (2WD)

WARNING: This page is about a different variant/trim than selected.

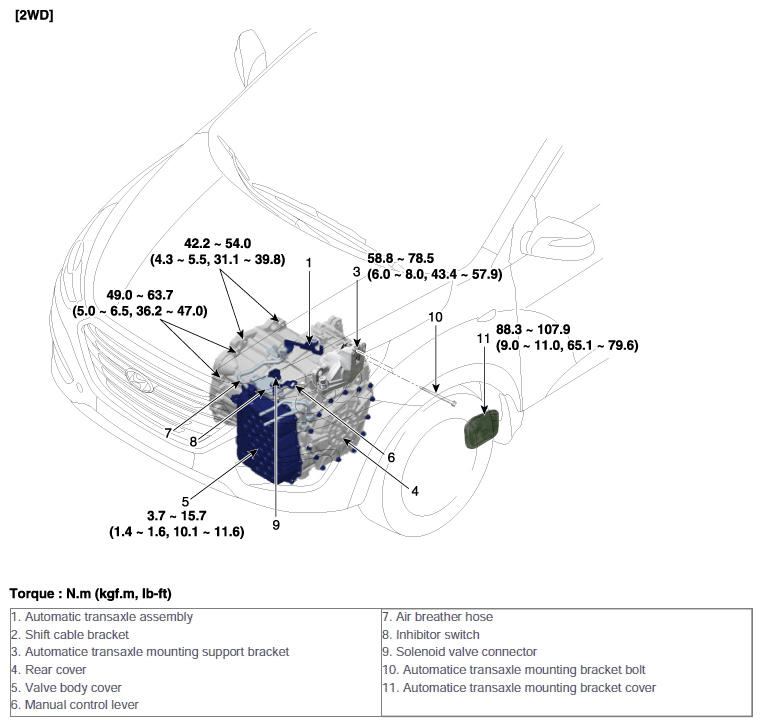

Fig 1: Automatic Transaxle System Component Locations With Torque Specifications
G10631649Courtesy of HYUNDAI MOTOR AMERICA
