Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

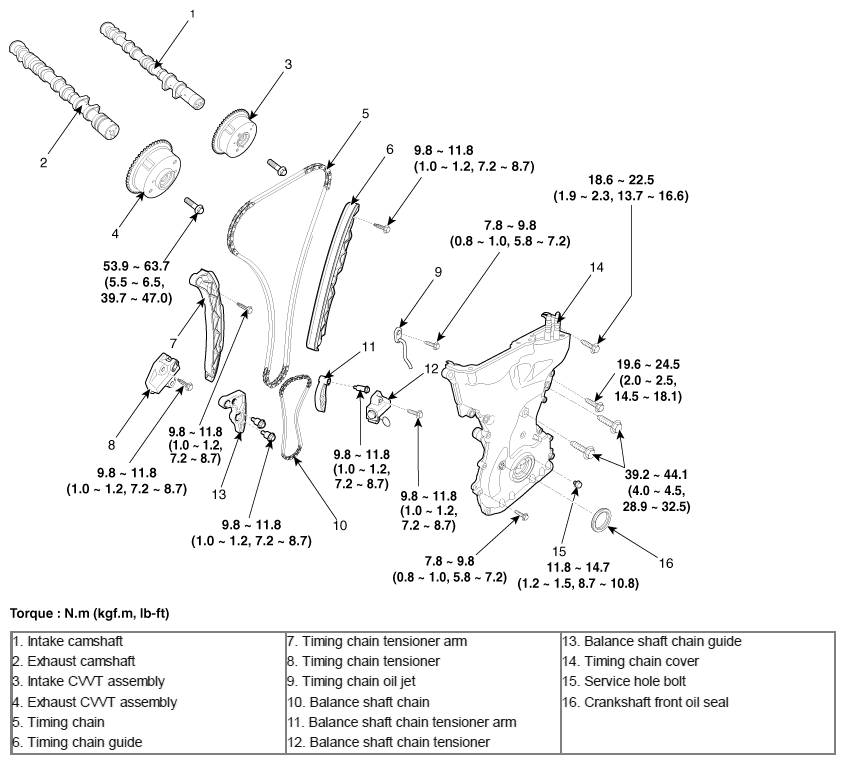

Fig 1: Timing System Components With Torque Specifications
G10631079Courtesy of HYUNDAI MOTOR AMERICA
