Removal And Installation: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For additional service information, refer to TSB .
CAUTION:
  • The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.
  • The wiring harness for the wheel speed sensor should be routed without twisting.

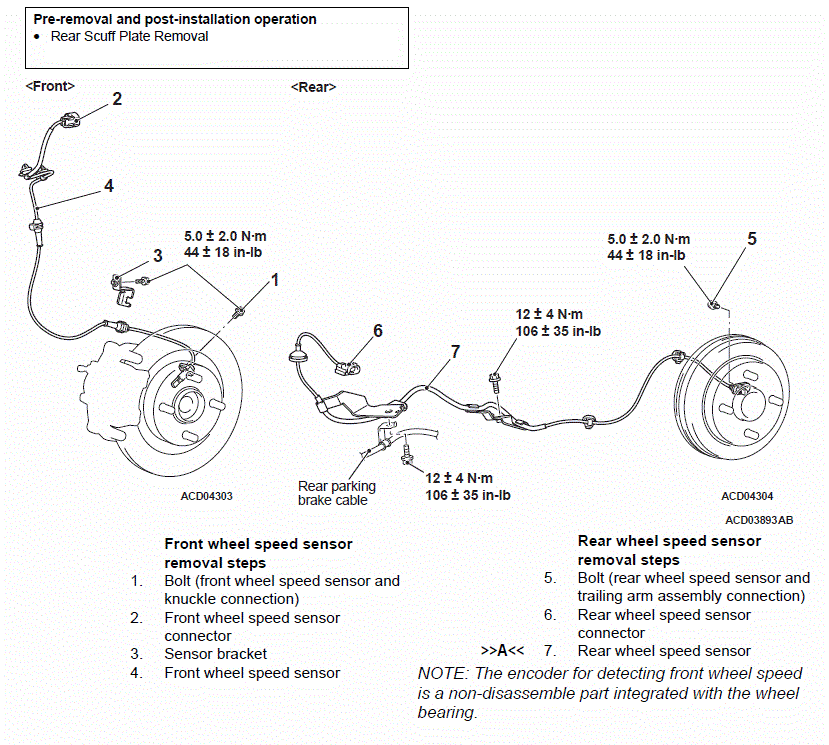

Fig 1: Removing/Installing Wheel Speed Sensor And Mounting Bolts With Torque Specifications
G00562287Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
