Control Wiring Harness Connection

WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ground terminal to the timing chain case as shown in illustration.
  2. Tighten the ground terminal mounting bolt to the specified torque.

    Tightening torque: 9.0 ± 2.0 N.m (80 ± 17 in-lb)

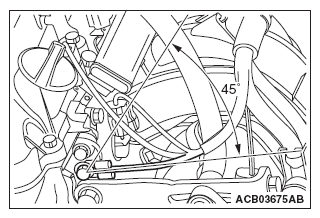

    Fig 1: Identifying Ground Terminal To Timing Chain Case Angle
    G09628284Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
