Liftgate Gas Spring Connection Removal

WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not disassemble or throw the liftgate gas spring assembly into the fire.
Before disposal, make a hole to remove the gas.
Make sure that the piston rod should not collect any foreign particles.

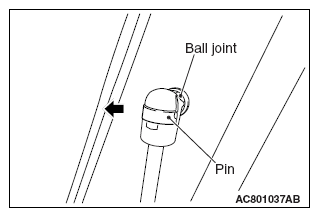

Slide the pin and remove the liftgate gas spring assembly from the ball joint in the direction of the arrow.

Fig 1: Identifying Grease Applying Area On Liftgate Hinge

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
