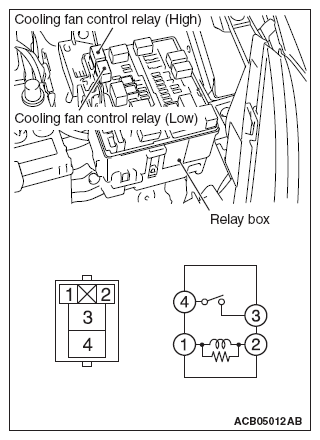

Cooling Fan Control Relay Continuity Check
WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
| Battery voltage |
Terminal No. to be connected to tester |
Continuity test results |
| Not applied |
4 - 3 |
Open circuit |
| Connect terminal No. 1 and positive battery terminal. Connect terminal No. 2 and negative battery terminal. |
Continuity (less than 2 ohms) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
