Removal And Installation: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

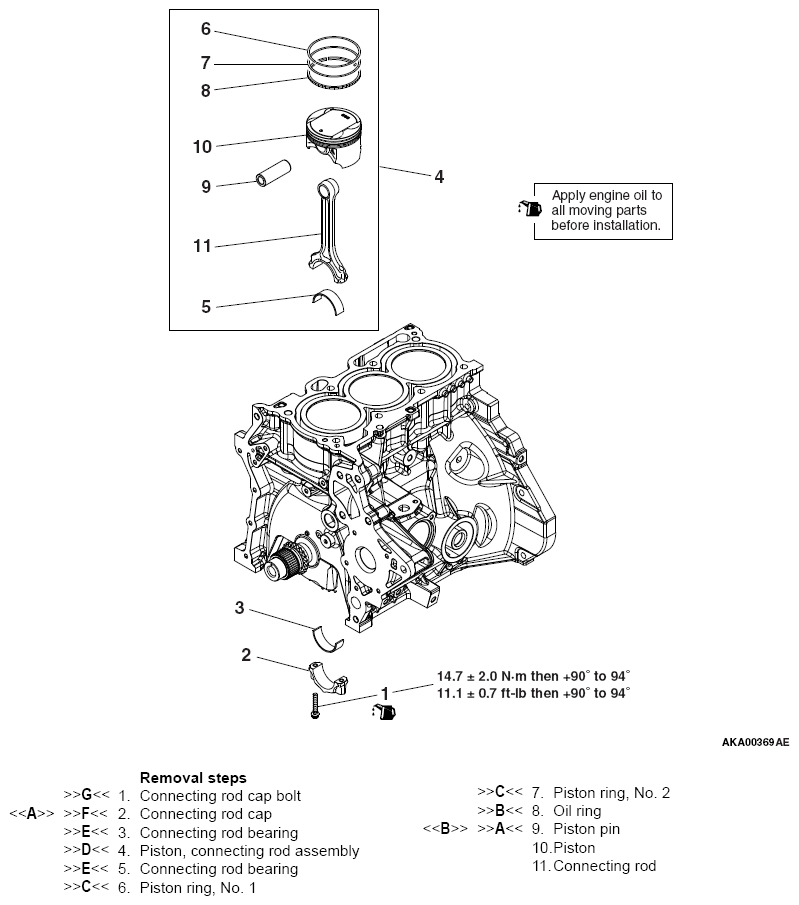

Fig 1: Removing/Installing Piston And Connecting Rod Components With Torque Specifications
G09628405Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
