Circuit Diagram

(M/T)

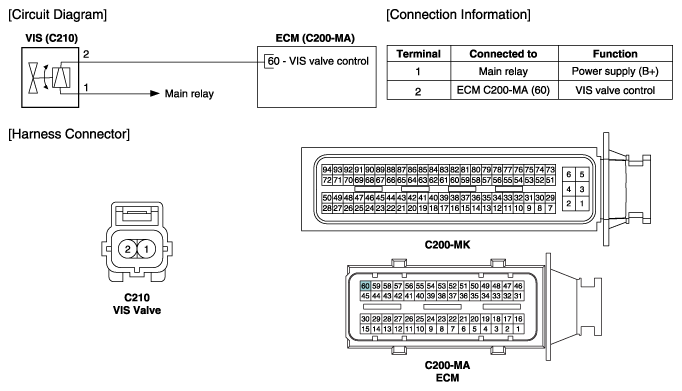

Fig 1: VIS Circuit Diagram (M/T)

G10611548

Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

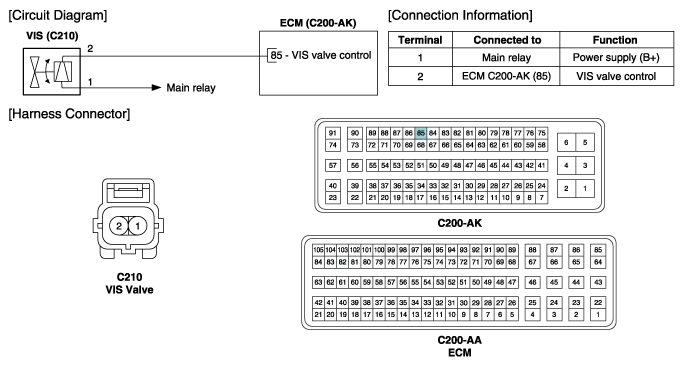

Fig 2: VIS Circuit Diagram (A/T)

G10611549

Courtesy of HYUNDAI MOTOR AMERICA
