Circuit Diagram

(M/T)

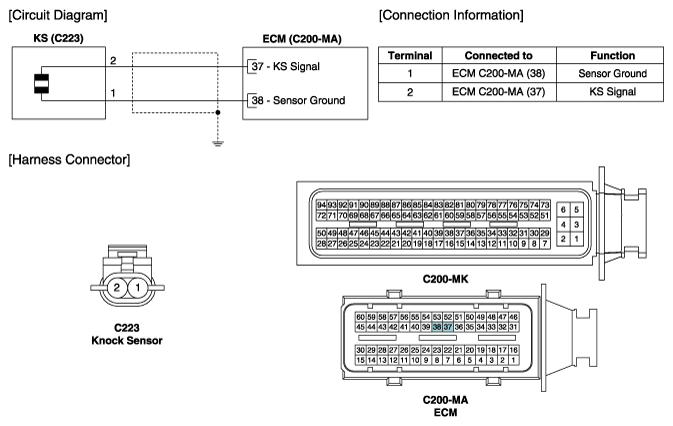

Fig 1: Knock Sensor Circuit Diagram (M/T)

G10611491

Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

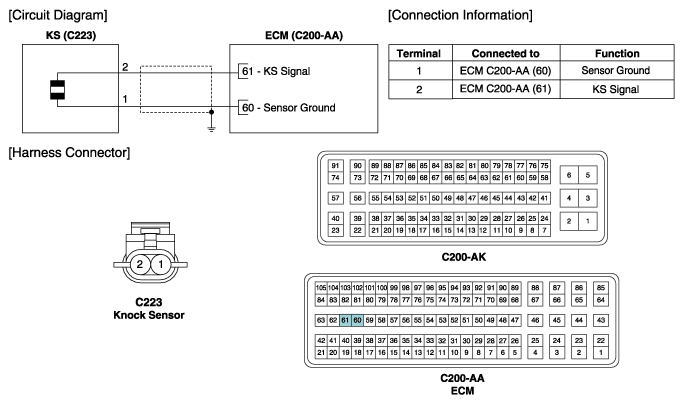

Fig 2: Knock Sensor Circuit Diagram (A/T)

G10611492

Courtesy of HYUNDAI MOTOR AMERICA
