Circuit Diagram

(M/T)

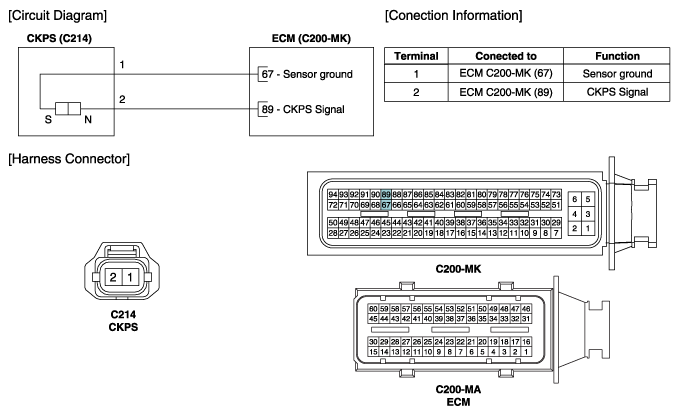

Fig 1: CKPS Circuit Diagram (M/T)

G10611479

Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

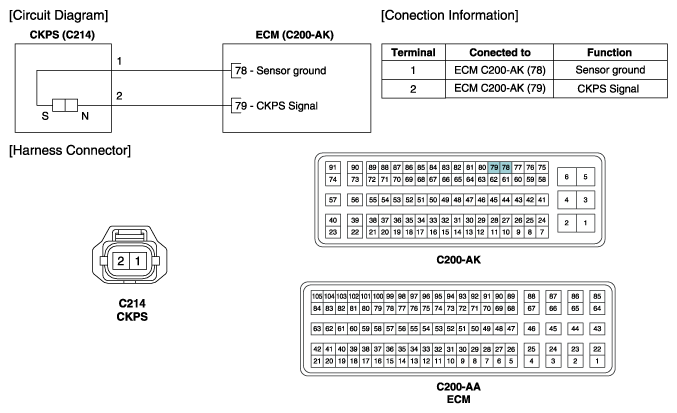

Fig 2: CKPS Circuit Diagram (A/T)

G10611480

Courtesy of HYUNDAI MOTOR AMERICA
