Center Pillar Trim Replacement [General]

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the front door scuff trim and rear door scuff trim.
After loosening the mounting bolt, then remove the front seat belt lower anchor (A).
Remove the center lower pillar trim (B).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

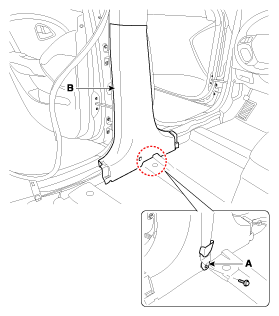

Fig 1: Identifying Center Lower Pillar Trim
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cap, loosen the mounting bolts.
Remove the center upper pillar trim (A).

Fig 2: Identifying Center Upper Pillar Trim
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- Replace any damage clips.
