Lower Panel Replacement

  1. Using a screwdriver or remover, remove the crash pad side cover (A).
    Fig 1: Identifying Crash Pad Side Cover
    G10612702Courtesy of HYUNDAI MOTOR AMERICA
  2. After loosening the crash pad lower panel mounting screws, then remove the crash pad lower panel (A).
  3. Disconnect the diagnosis connector (B).

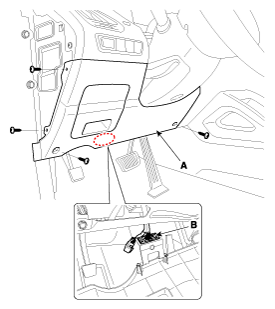

    Fig 2: Loosening Crash Pad Lower Panel Mounting Screws
    G10612703Courtesy of HYUNDAI MOTOR AMERICA
  4. After loosening the mounting bolts, then remove the reinforce panel (A).
    Fig 3: Loosening Reinforce Panel Mounting Bolts
    G10612704Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order the removal.
