Manual Transaxle

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver, remove the knob (A) and boots (B).

Fig 1: Removing Knob And Boots Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA

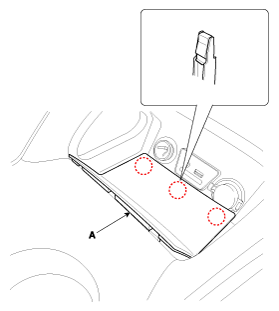

Using a screwdriver, remove the floor console tray (A).

Fig 2: Identifying Floor Console Tray
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver, remove the floor console bezel (A).

Fig 3: Identifying Floor Console Bezel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Fig 4: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver, remove the console upper cover (A).

Fig 5: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Fig 6: Identifying Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console tray mat (A).

Fig 7: Identifying Console Tray Mat
Courtesy of HYUNDAI MOTOR AMERICA
Remove the extension side cover (A).

Fig 8: Identifying Extension Side Cover
Courtesy of HYUNDAI MOTOR AMERICA

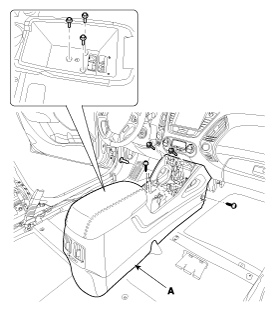

After loosening the mounting bolts and screws, then remove the floor console assembly (A).

Fig 9: Loosening Floor Console Assembly Mounting Bolts And Screws
