ESCL Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "ESCL STATUS INFO".

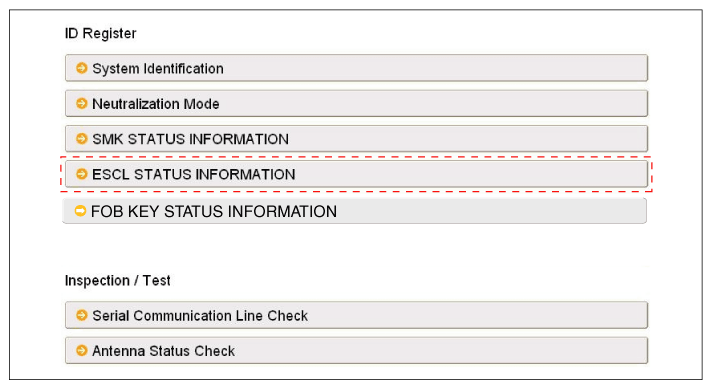

    Fig 1: Display - ESCL Status Information Screen (1 Of 2)
    G10613046Courtesy of HYUNDAI MOTOR AMERICA

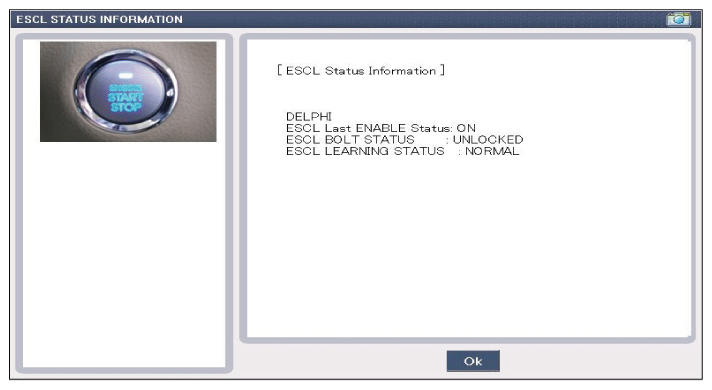

    Fig 2: Display - ESCL Status Information Screen (2 Of 2)
    G10613047Courtesy of HYUNDAI MOTOR AMERICA
