Components and Components Location: Components

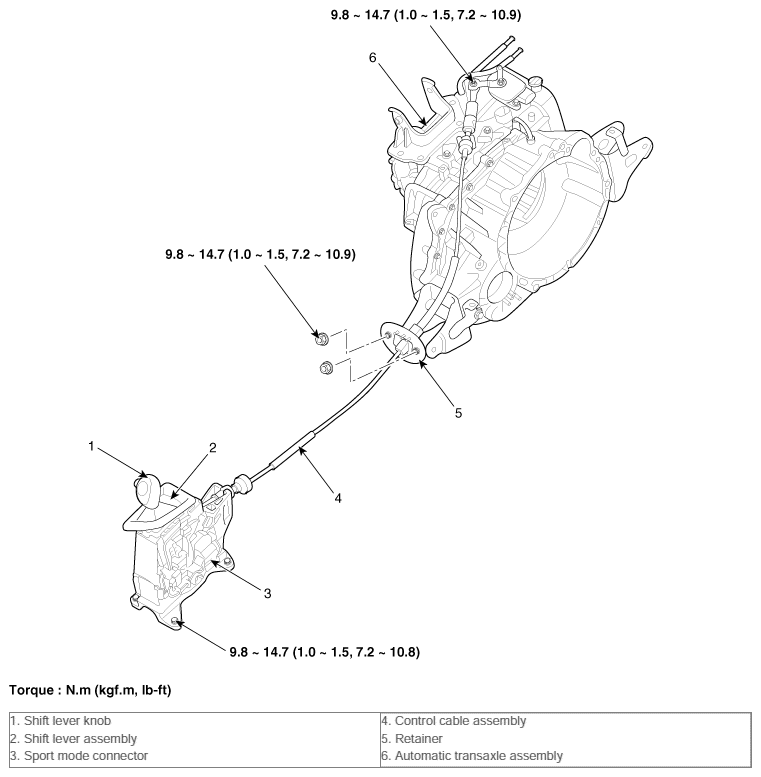

Fig 1: Identifying Shift Lever Related Components With Torque Specification

G10588875

Courtesy of HYUNDAI MOTOR AMERICA
