Sonata Hybrid
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System (HEV)
>>
Output Speed Sensor
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

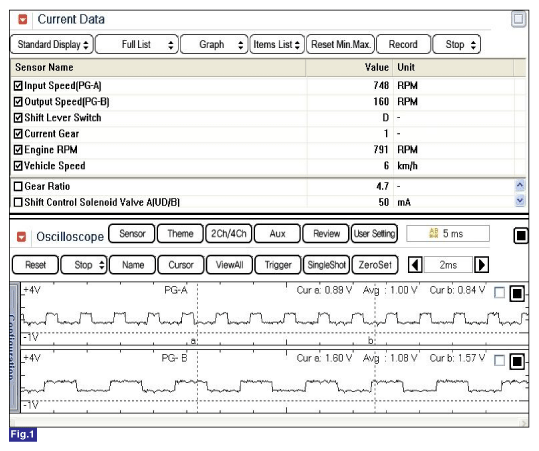

Fig 1: Screen Display - Current Data (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

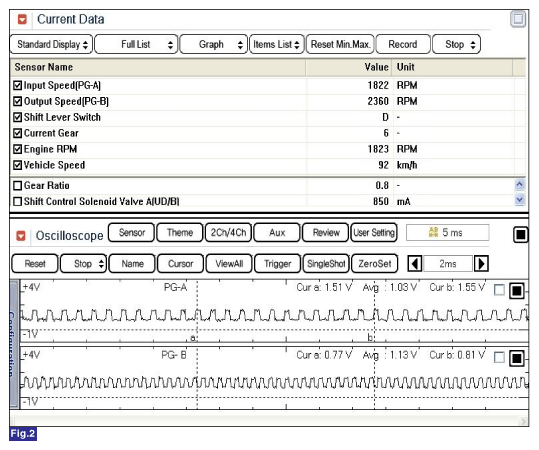

Fig 2: Screen Display - Current Data (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
