Special Service Tools
| Tools (Number and name) |
Illustration | Use |
|---|---|---|
| 09200-3N000 Engine support fixture (Beam) |
Removal and installation of the transaxle. Except lower supporter, use beam only with new engine support fixture supporter (SST No.: 09200-2S000) |
|
| 09200-2S000 Supporter |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S000) |
|
| 09200-2W000 Adapter |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/3N000) with the adapter (SST No.: 09200-2W000) |
|
| 09453-3L240 Oil seal installer |
2WD: Installation of oil seal for the transaxle case and converter housing side. [Using with bar (SST NO.: 09231-H1100)] 4WD: Installation of oil seal for the transaxle case side. [Using with bar (SST NO.: 09231-H1100)] |
|
| 09453-2W100 Oil seal installer |
4WD: Installation of oil seal for the transaxle converter housing side. [Using with bar (SST NO.: 09231-H1100)] The transaxle case side is install using the oil seal installer (SST No: 09453-3L240, 09231-H1100). |
|
| 09231-H1100 Bar |
Installation of transaxle case oil seal. [Using with oil seal installer (SST No.: 09453-3L240, 09453-2W100)] |
|
| 09480-A3800 Inhibitor neutral fixed pin |
Inhibitor neutral fixed. |

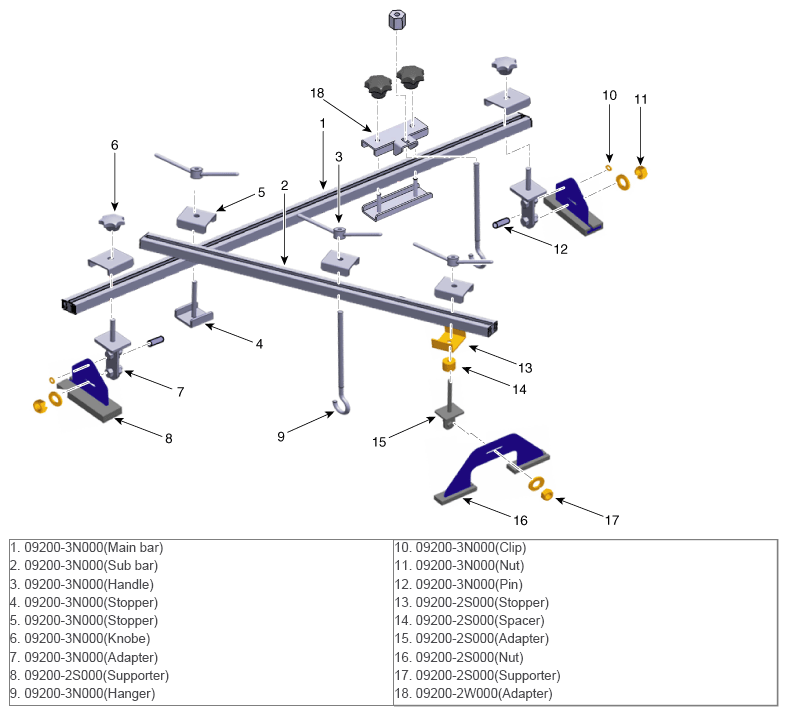

* Engine support fixture special tool assembly drawing
