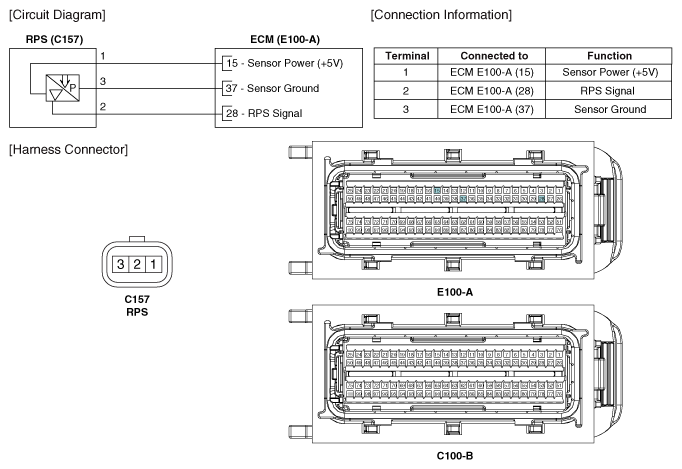

Home >> Hyundai >> 2015 >> Santa Fe XL Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Rail Pressure Sensor - RPS >> Schematic Diagrams >> Circuit Diagram
