Driver Power Window Switch

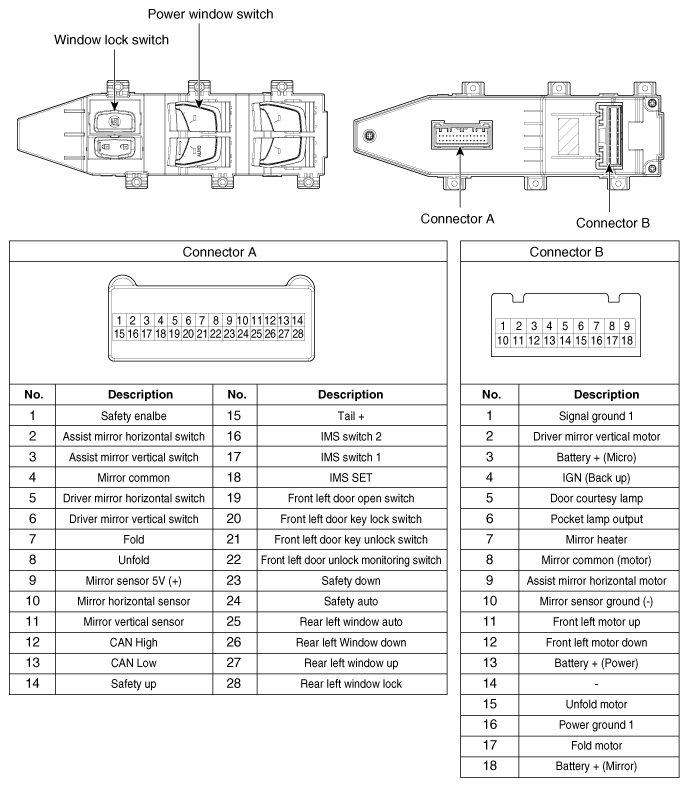

Fig 1: Power Window Switch Components With Connector End Views

G10584725

Courtesy of HYUNDAI MOTOR AMERICA
