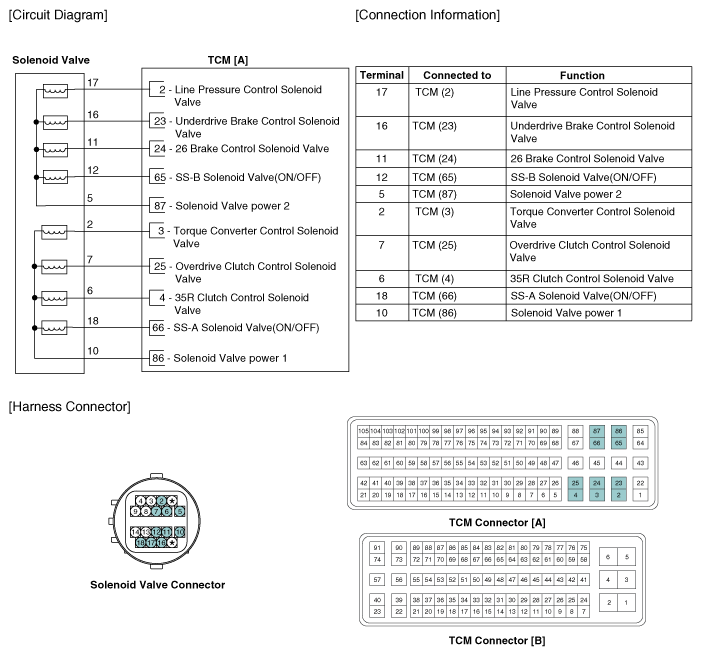

Home >> Hyundai >> 2015 >> Santa Fe Sport Base, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Torque Converter Control Solenoid Valve (TCON_VFS) >> Schematic Diagrams >> Circuit Diagram
