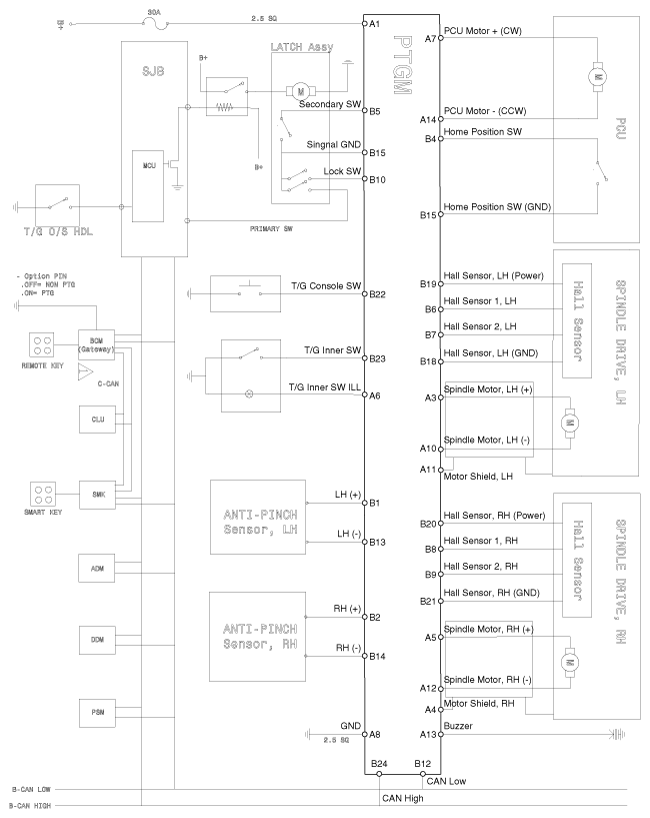

Home >> Hyundai >> 2015 >> Santa Fe Sport 2.0T, AWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Power Liftgate Module >> Power Liftgate Unit >> Schematic Diagrams >> Block Diagram
