Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Data Link Connector Location
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart Key Code Saving".

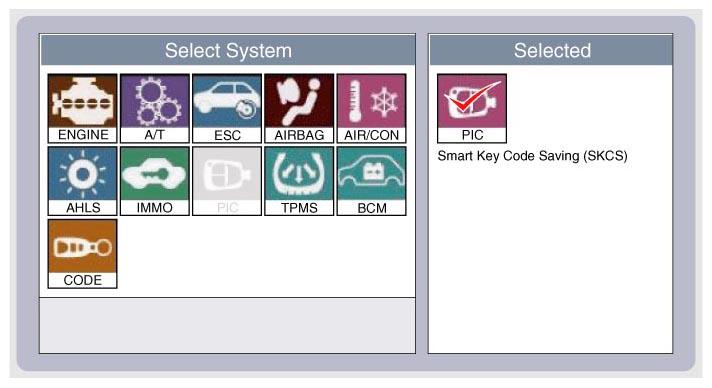

Fig 2: Screen Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA

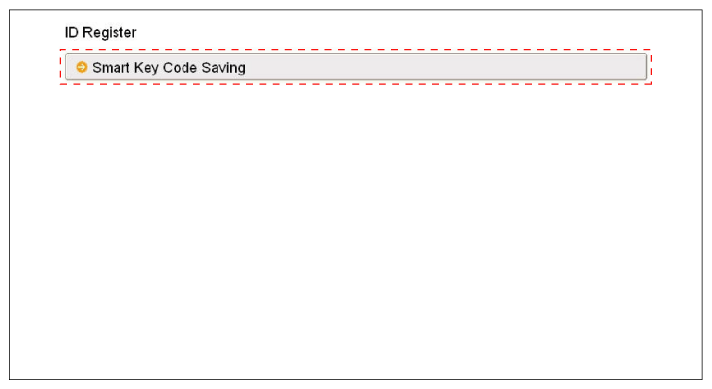

Fig 3: Screen Display - ID Register
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be displayed in graphic.

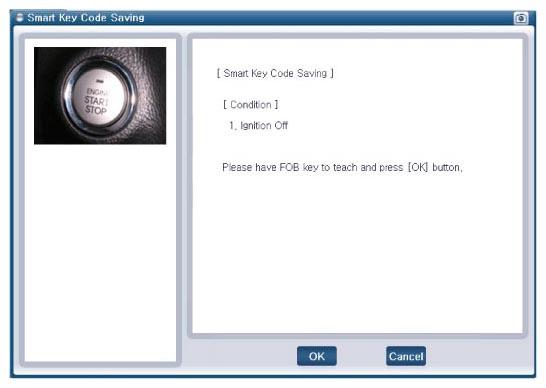

Fig 4: Screen Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.
Input the "Pin Code" for first key teaching.

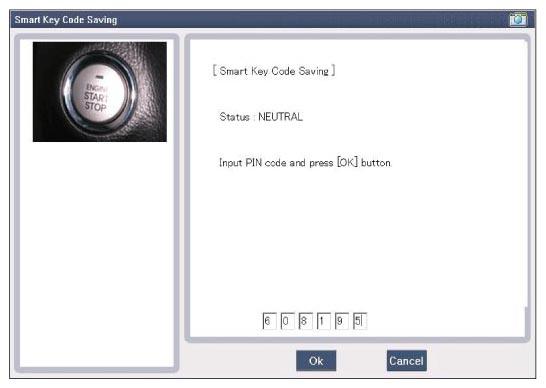

Fig 5: Screen Display - Enter Pin Code (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

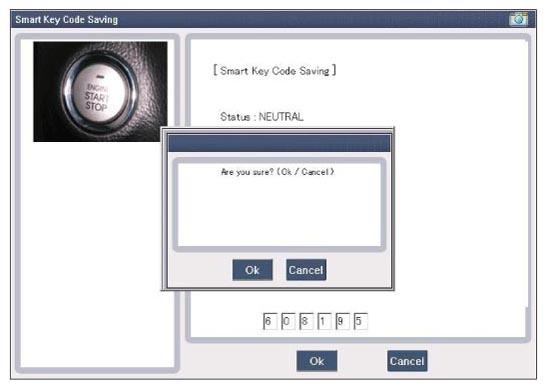

Fig 6: Screen Display - Enter Pin Code (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

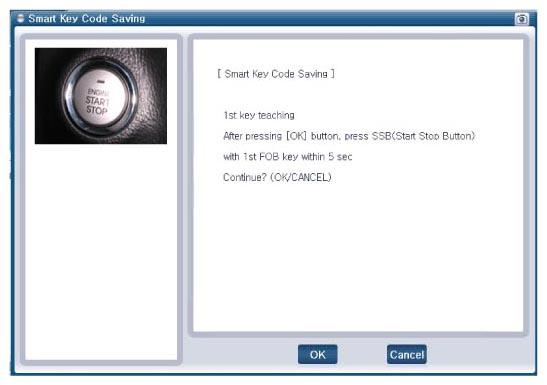

Fig 7: Screen Display - First Key Teaching (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First Key Teaching Completed".

Fig 8: Screen Display - First Key Teaching Completed (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

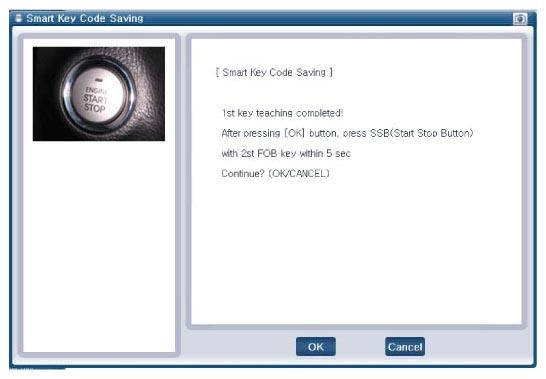

Fig 9: Screen Display - Second FOB Key
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second Key Teaching Completed".

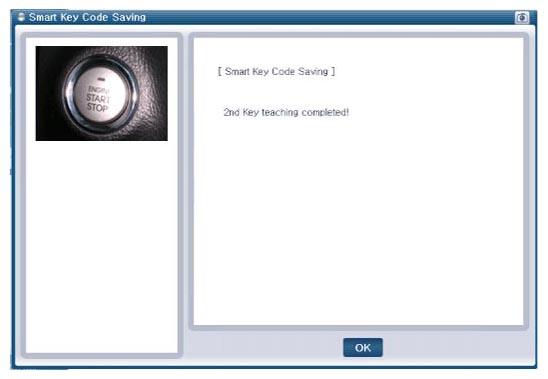

Fig 10: Screen Display - Second Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be displayed in graphic when key teaching process is completed.

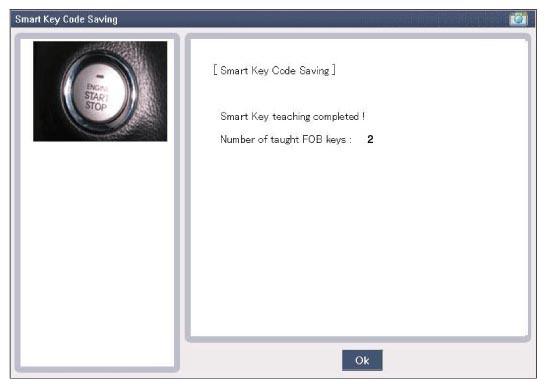

Fig 11: Screen Display - Smart Key Teaching Completed

Courtesy of HYUNDAI MOTOR AMERICA
