Home >> Hyundai >> 2015 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Hydraulic System >> Fluid >> Components and Components Location >> Component Location

Component Location

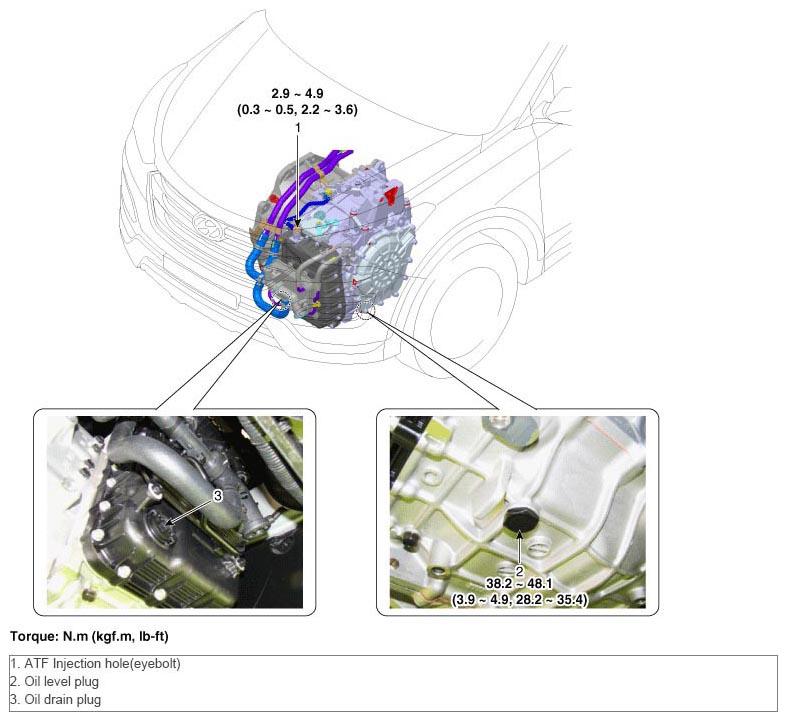

Fig 1: Oil Level Plug And Oil Drain Plug With Torque Specifications

G10575091

Courtesy of HYUNDAI MOTOR AMERICA
