Components and Components Location: Component

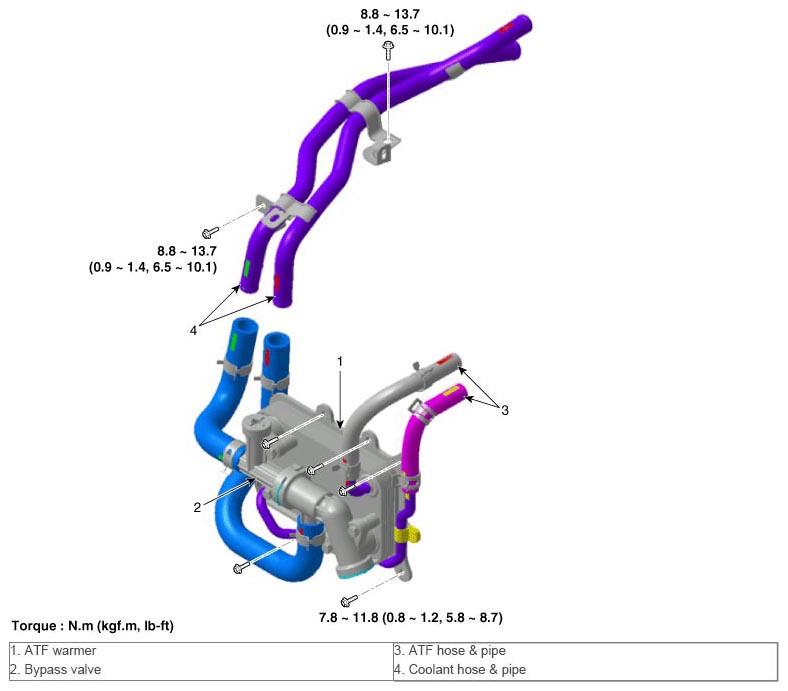

Fig 1: ATF Warmer Components With Torque Specifications (2 Of 2)

G10575079

Courtesy of HYUNDAI MOTOR AMERICA
