Home >> Hyundai >> 2015 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing Chain >> Components and Components Location >> Components

Components and Components Location: Components

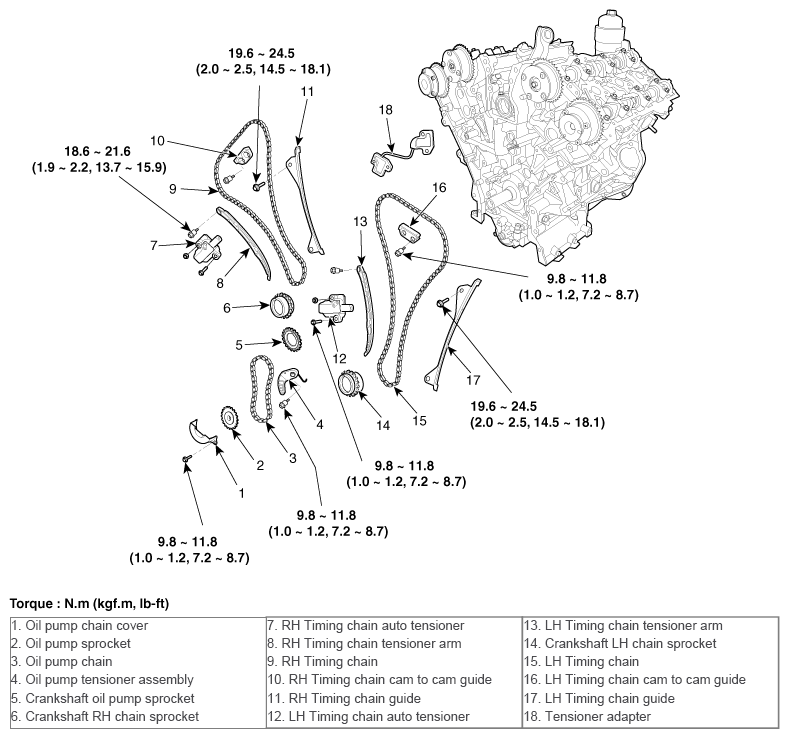

Fig 1: Timing Chain Components With Torque Specifications

G10574348

Courtesy of HYUNDAI MOTOR AMERICA
