Charging System: Battery: Troubleshooting

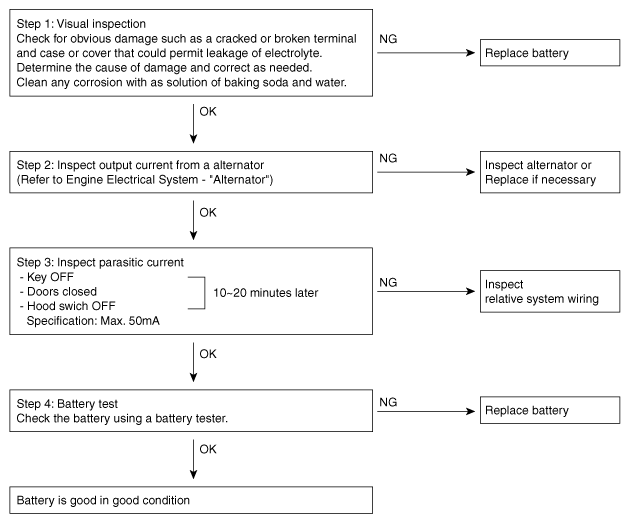

Fig 1: Battery Troubleshooting Flowchart

G10574724

Courtesy of HYUNDAI MOTOR AMERICA
