Components and Components Location: Components

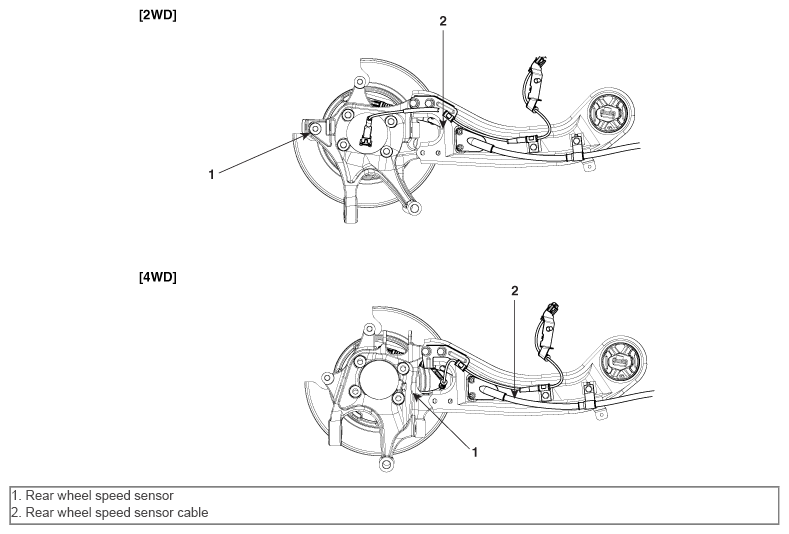

Fig 1: Rear Wheel Speed Sensor Components

G10575921

Courtesy of HYUNDAI MOTOR AMERICA
