Components and Components Location: Components

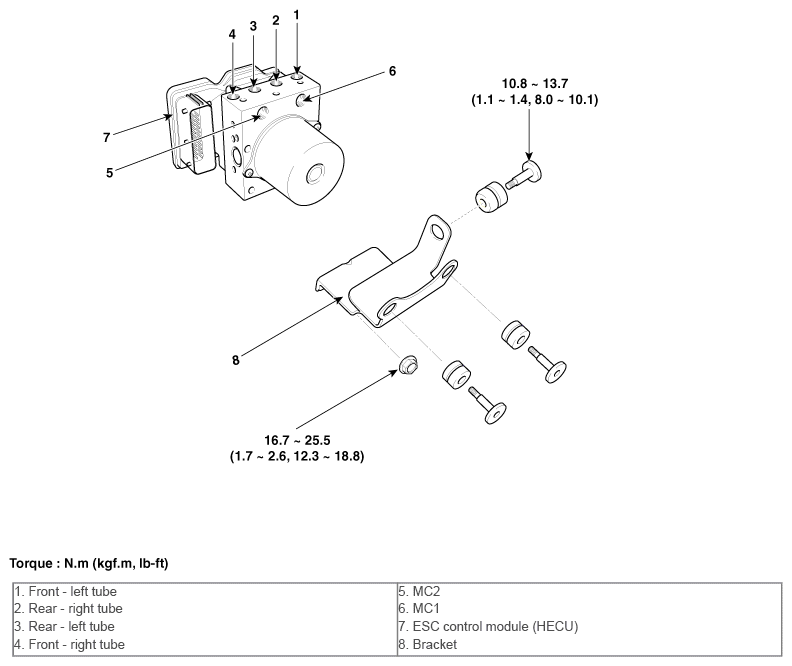

Fig 1: ESC Control Module Components With Torque Specifications

G10575913

Courtesy of HYUNDAI MOTOR AMERICA
