Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".
    Fig 1: Screen Display - SMK Status Info (1 Of 2)
    G10576668Courtesy of HYUNDAI MOTOR AMERICA

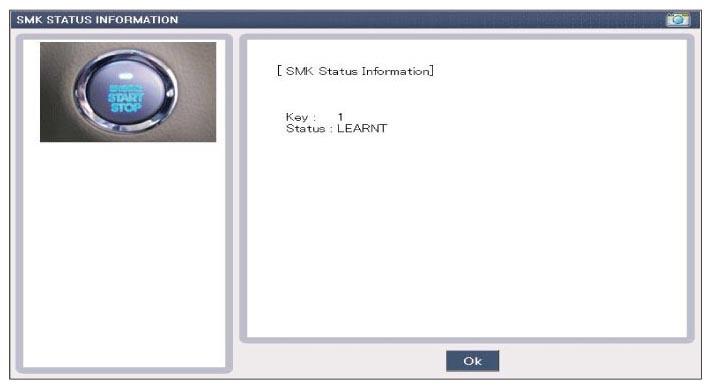

    Fig 2: Screen Display - SMK Status Info (2 Of 2)
    G10576669Courtesy of HYUNDAI MOTOR AMERICA
