Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

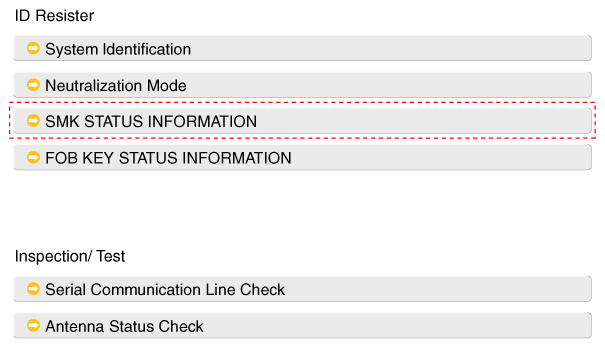

Fig 1: Screen Display - Neutralization Mode (1 Of 7)
Courtesy of HYUNDAI MOTOR AMERICA

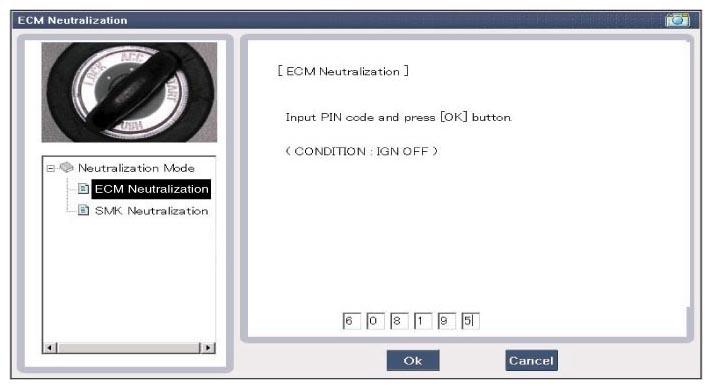

Fig 2: Screen Display - Neutralization Mode (2 Of 7)
Courtesy of HYUNDAI MOTOR AMERICA

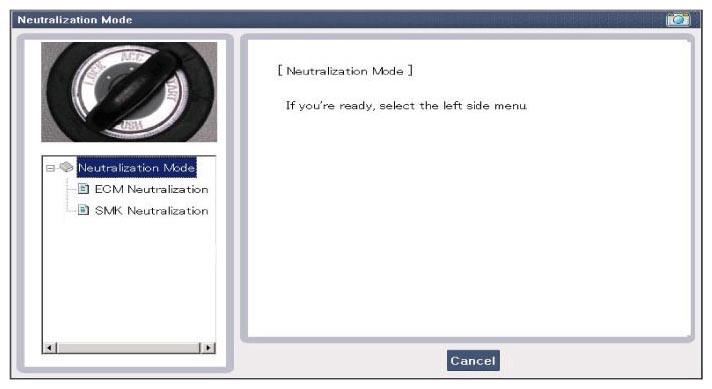

Fig 3: Screen Display - Neutralization Mode (3 Of 7)
Courtesy of HYUNDAI MOTOR AMERICA

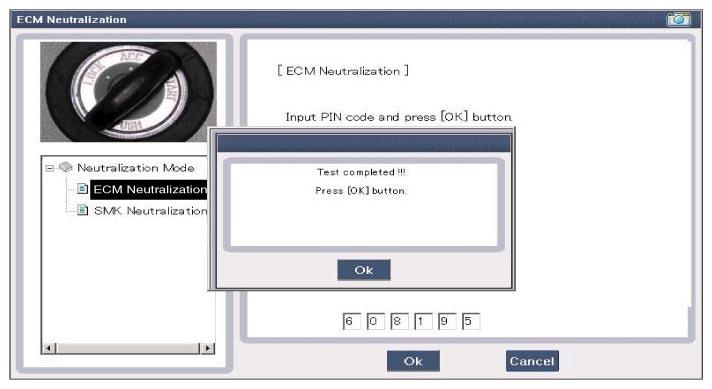

Fig 4: Screen Display - Neutralization Mode (4 Of 7)
Courtesy of HYUNDAI MOTOR AMERICA

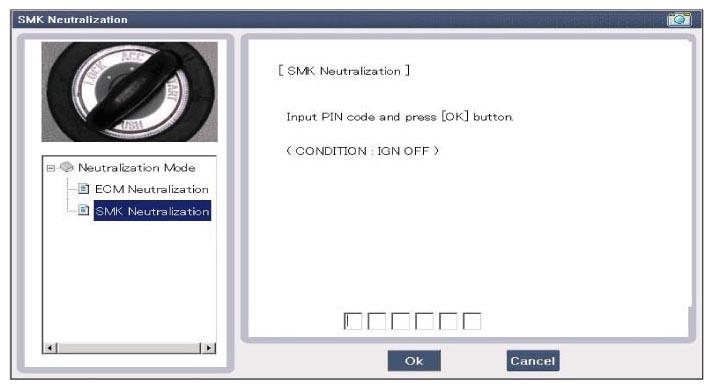

Fig 5: Screen Display - Neutralization Mode (5 Of 7)
Courtesy of HYUNDAI MOTOR AMERICA

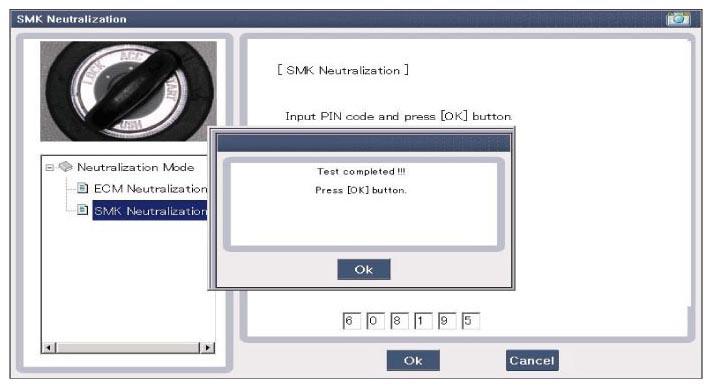

Fig 6: Screen Display - Neutralization Mode (6 Of 7)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Screen Display - Neutralization Mode (7 Of 7)
Courtesy of HYUNDAI MOTOR AMERICA

INPUT SWITCH LIST

No	Item name	Unit
1	SSB SW1	-
2	SSB SW2	-
3	ACC	-
4	IGN1	-
5	IGN2	-
6	ACC/IGN1/IGN2 Relay	-
7	Gear 'P' Position (A/T) Clutch SW (M/T)	-
8	Brake SW	-
9	FL Door Lock Button	-
10	FR Door Lock Button	-
11	Liftgate Release Button	-
12	Battery Voltage	-
13	Wheel Speed	-

ACTUATOR LIST

No.	Item name	Condition
1	External Buzzer	Ignition switch ON Engine off
2	Interior Antenna 1 Active	Ignition switch ON Engine off
3	Interior Antenna 2 Active	Ignition switch ON Engine off
4	Interior Antenna 3 Active	Ignition switch ON Engine off
5	Bumper/trunk Antenna Active	Ignition switch ON Engine off
6	DRV_DR Antenna Active	Ignition switch ON Engine off
7	AST_DR Antenna Active	Ignition switch ON Engine off
8	BBS Illumination (OFF/ACC/ON)	Ignition switch ON Engine off
9	ACC/IGN1/IGN2 Relay	Ignition switch ON
