Block Diagram

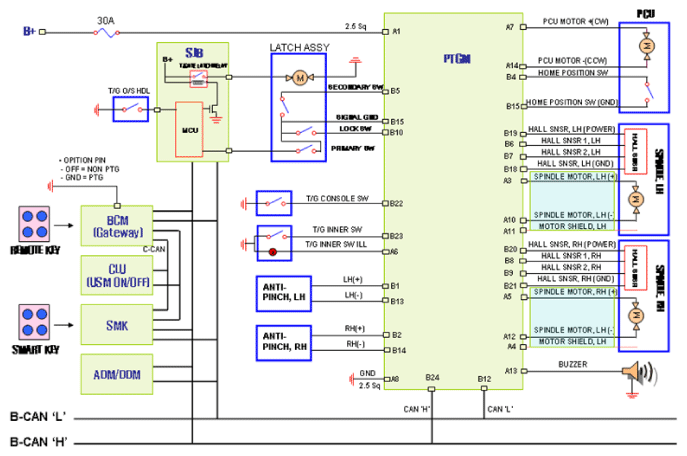

Fig 1: Power Liftgate Control Module Block Diagram

G10576950

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Power Liftgate Switch Terminal Continuity Chart

G10576951

Courtesy of HYUNDAI MOTOR AMERICA
