Component Location

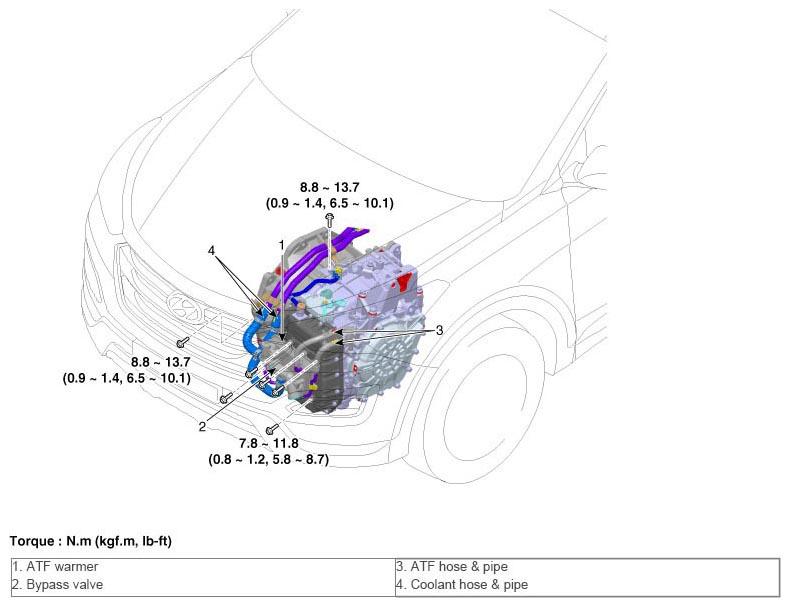

Fig 1: ATF Warmer Components With Torque Specifications (1 Of 2)

G10575078

Courtesy of HYUNDAI MOTOR AMERICA
